Light Commercial Reverse Osmosis

Floor Mounted Features of our Light Commercial Reverse Osmosis System

Our Light Commercial Reverse Osmosis System frame is constructed of welded St. Footprint is 20” x 20” and the height varies from 40” to 54” depending on the output. All are fully tested and have inlet 5 micron and carbon cartridges, low-pressure switch, tank fill control, pressure gauges, re-circulation pressure set valve, auto-adjust drain control. Numerous options are available.

Light Commercial Reverse Osmosis Systems

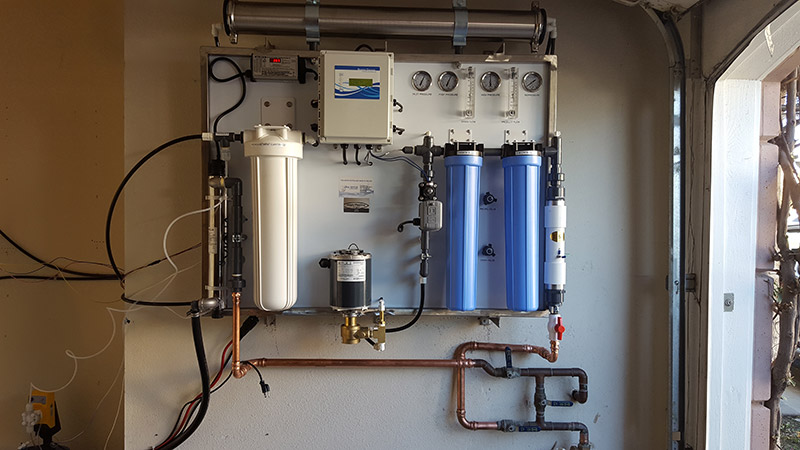

Wall Mounted Unit Features

Width is 36” (brackets 32” on center), out from wall 10” and the height varies from 26” to 44” depending on output. All are fully tested, and have inlet 5 mi-cron and carbon cartridges, low pressure switch, tank fill control, pressure gauges, re-circulation pressure set valves, auto adjust drain control. Numerous options available.

Wall Mount Commercial Reverse Osmosis

OPTIONS:
-Permeate and concentrate flow meters
-Permeate TDS meter
-Microprocessor with atmospheric tank level switch, on/off switch, alpha messages
-Tether switch for atmospheric tank on/off control
-Inlet ESF catalytic/magnetic device for non-chemical membrane scale prevention
-Custom sizes and outputs available upon request
-Above are shown with microprocessor conmtrol
