This environmentally friendly solution uses a catalytic/magnetic process and a special media to transform hardness into a form that prevents hard water scale while simultaneously removing chlorine, significantly reducing chloramines and removing trace heavy metals such as Arsenic, Lead, Chromium and others.  As a bonus benefit, the media used is biostatic thus preventing any bio growth which occurs with carbon offered by competitive systems.  No salt, no chemicals, no water to drain and no electricity.

The ANF NUTRIENT DELIVERY SYSTEM automatically adds up to six nutrients from cone-bottomed graduated tanks while also adjusting the pH up/down as required. A stainless steel pump circulates the mixture at 15 GPM and pH plus the ELECTRO CONDUCTIVITY (EC) are monitored and displayed. Feed stops at max. EC setting. The pump can deliver treated water to the growing area,

APPLICATIONS

• Cannabis
• Herbs
• Flowers
• Basil
• Anise

SPECIFICATIONS

• Dimensions: 56”L x 36” W x 60” H
• Electrical Power. 230/60/1. 3/4 Hp
• Feed pumps. Diaphragm. 0.1—5L/HR each (8)
• Plumbing. Schedule 80 PVC
• Frame material Aluminum. On castors
• Other sizes and controls availability upon request

Two Column Water Deionizer Systems

Two column automatic water deionizer systems consist of two media tanks in series. The first tank contains cation resin in the Hydrogen (H) form and the second tank contains anion resin in the Hydroxyl (OH) form. Typical treated water quality is in the range of 50,000-250,000 ohm resistivity depending on feed water chemistry and 1,000,000 to 2,500,000 ohm resistivity with R.O. water as a feed. These units are designed to regenerate with chemicals DIRECTLY FROM THEIR SHIPPING CONTAINERS—NO HANDLING REQUIRED. Chemicals used are 30% Hydrochloric (HCl) acid and 50% liquid Sodium Hy-droxide (NaOH). Systems are fully automatic with regeneration initiated by a field adjustable resistivity meter. A manual override is included to allow the operator to finish a “run” without interruption.

‍

‍

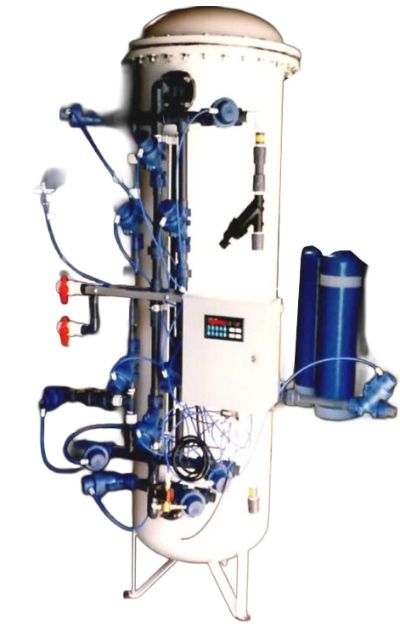

Mixed Bed Single Tank

Mixed bed single tank automatic water deionizer systems consist of both the cation and the anion resin mixed within the same tank for the ultimate in reduction of dissolved solids. Treated water quality is from 10,000,000 to 18,000,000 ohm Resistance. Resins are separated during regeneration with HCl and NaOH and then re-mixed with air for service (a source of compressed air delivering 6.5 scfm/sq. ft. tank area is required).  A softener is also required to pretreat the anion regeneration water.

‍

Because we are dealing with harsh waters it is very important that we use tank and valve materials that are not going to be compromised by the water conditions. Quite often there is pre and post treatment to backwashing filters. The pretreatment will often be a chemical feed system, feeding something like chlorine or hydrogen peroxide, perhaps ozone will help with the oxidizing properties and will remove iron and manganese. It is not unusual to put a post cartridge filter after a media filter, let the media filter do the 99% of the work and then just any trace amounts of the contaminant would then be picked up by the post cartridge filter.

The revolutionary Dime Water, Inc. system utilizes a very unusual and efficient ion exchange resin-based adsorption medium that can seek and remove Boron directly from the well or from RO permeate. Essentially a water softener with a special regenerant control as shown to the right of the pressure tank and a smart controller to the left.

Once water chemistry is determined and a volume/flow of water is expressed a system is designed that:

• Meters the volume of water that has been treated and automatically starts a regeneration
• Backwashes out any collected debris
• Draws in hydrochloric acid to dissolve the Boron off of the resin
• Rinses the Boron laden acid to drain
• Flushes the resin clean
• Draws in sodium hydroxide (caustic soda) to neutralize the resin
• Rinses and then flushes the caustic soda out
• Returns to providing Boron removal
• The use of acid and caustic is highlighted.

UPPER BORON LIMITS FOR CERTAIN CROPS –mg/l (PPM)**

• <0.5 blackberry, CANNABIS
• 0.5-1 peach, cherry, plum, grape, onion, garlic, sweet potato, wheat, barley, strawberry
• 1-2 red pepper, pea, carrot, radish, potato, cucumber
• 2-4 lettuce, cabbage, celery, turnip, oat, corn, artichoke, tobacco, squash
• 4-6 tomato, alfalfa, parsley, sugar-beet
• 6-14 asparagus

** Information by Australian Dept. of Agriculture

Our quality control measures involve at least two technicians at all times to ensure that the final quality and performance of each system are ensured.

Each reverse osmosis system is supplied with a comprehensive instruction packet with a reverse osmosis system diagram as well as a complete read-out of performance test results.

Properly designed high-pressure Commercial Reverse Osmosis and Industrial Reverse Osmosis Units:

• Are able to reduce all dissolved analytes by 99% EXCEPT for Boron and Nitrates. Significant Boron reduction with its weak ionic charge requires special membranes and higher operating pressures, special pretreatment, or post-treatment. Nitrates require special membranes and higher pressures or post-treatment to reach 99% removal.
• Can be constructed to achieve one or two megohm quality water without the need for post-treatment such as EDI or ion exchange DI tanks.
• Have a membrane porosity from 0.0001 to 0.001 micron which makes it an effective barrier to bacteria, viruses, cysts, and endotoxins.
• Are able to operate with water efficiencies as high as 85%
• Will function without membrane replacement or cleaning for 5 years or more.
• Provide extremely low hardness levels suitable for high-pressure boiler applications
• As an aggregate use 25% less electrical energy than they did a decade ago because of improvements in membrane technology
• Are offered with blend valves to permit tailoring of water constituents for brewers, distillers, coffee preparation, and bottlers.
• Offer cost-effective pretreatment that eliminates CAPEX and OPEX of carbon filters and water softeners.
• Can be custom-fabricated to fit provided spaces
• Use controls that have a 10 year plus 100% reliability history

Pre-treatment with 5 micron particulate filtration and 5 micron carbon block. Post treatment is with enhanced carbon. Efficient 1:1 product to drain ratio.

GALLONS DAILY TREATED WATER: 100
PRODUCT: DRAIN RATIO: 1:1
UNIT SIZE W X H X D – INCH: 16 x 19 x 6
TANK SIZE DIA. X HEIGHT – INCH: 11 x 14.5
TANK GALLONS IN STORAGE⁽¹⁾: 2.6
WATER QUALITY METER: NO
NUMBER OF TREATMENT STEPS: 4
REMINERALIZER / pH INCREASE: NO
TYPICAL TDS REDUCTION⁽³⁾ – %: 90
HEMOTITE AND CRYSTALS: NO
NEODYMIUM MAGNETIC FIELD: NO
STRUCTURED WATER CELL: NO
VORTEX: NO

NOTES:
(1) BASED ON 60 PSI FEED, 8 PSI PRE-CHARGE, AUTO SHUT-OFF AT 48 PSI.
(2) CUSTOM FILTERS USED THAT PERFORM MORE THAN ONE FUNCTION.
(3) BASED ON 60 PSI FEED, TDS <400 PPM, 77° F AND TEST BEFORE POST TREATMENT . HIGHER VALUES TO NON-ELECTRIC PERMEATE PUMP TO ELIMINATE TDS CREEP.

Pre-treat with 5 micron, KDF, Enhanced Carbon, neodymium magnetic Field. Post treat cation resin, adjustable pH feature yielding magnesium, trace calcium (10:1 ratio) and molecular hydrogen, and activated carbon.

Drain flush valve, 3.2 Gallon tank, long reach faucet, EZ adapter, ¼” tubing and plastic drain clamp.

GALLONS DAILY TREATED WATER: 100
PRODUCT: DRAIN RATIO: 1.4:1
UNIT SIZE W X H X D – INCH: 16 x 19 x 6
TANK SIZE DIA. X HEIGHT – INCH: 11 x 14.5
TANK GALLONS IN STORAGE⁽¹⁾: 2.6
WATER QUALITY METER: NO
NUMBER OF TREATMENT STEPS⁽²⁾: 9
REMINERALIZER / pH INCREASE: YES
TYPICAL TDS REDUCTION⁽³⁾ – %: 95
HEMOTITE AND CRYSTALS: YES
NEODYMIUM MAGNETIC FIELD: YES
STRUCTURED WATER CELL: NO
VORTEX: NO

NOTES:
(1) BASED ON 60 PSI FEED, 8 PSI PRE-CHARGE, AUTO SHUT-OFF AT 48 PSI.
(2) CUSTOM FILTERS USED THAT PERFORM MORE THAN ONE FUNCTION.
(3) BASED ON 60 PSI FEED, TDS <400 PPM, 77° F AND TEST BEFORE POST TREATMENT . HIGHER VALUES TO NON-ELECTRIC PERMEATE PUMP TO ELIMINATE TDS CREEP.

Our residential reverse osmosis offerings to meet everyone’s needs include:

• DRO-100 Reverse Osmosis Water Saver (4 stage purification process)
• DRO-100-HE PLUS High Efficiency Reverse Osmosis Water Saver (6 stage purification process)
• Nature’s Balanced Reverse Osmosis Water System (8 stage purification process)
• Structured Water Under Counter Reverse Osmosis System

Elimination of hard water scale formation and removal of existing scale has numerous benefits including:

• Reduced water heating energy. A film of scale within a heater acts as an insulation barrier between the source of heat (flame) and water. Over time, the buildup of scale becomes so thick that the heat source is on 2 or 3 times as long increasing energy use by 200% or 300%. Additionally, this excess heat often damages heater tanks and components beyond repair.
• Better water pressure. Scale build-up within pipes, especially at fittings, restricts flow with a resulting loss in pressure.
• Lowers water use. With a reduction in pressure, the tendency of people to overcome this by letting the water run longer and ultimately increase water consumption by 25% or more.
• Water fixtures last longer with fewer repairs. In addition to being unsightly and destructive to plating, scale is abrasive and destroys internal seals.
• Water using appliances last longer. As with fixtures, hardness scale dramatically impairs the moving parts and seals within items such as dish washers, clothes washers, toilet valves, beverage dispensers and humidifiers.
• Plant growth is enhanced. The processes within the ESF lowers the surface tension of water enabling a lessor volume of water to penetrate more deeply into a plant improving growth and productivity.

Unlike other water descalers or scale preventers on the market, our ESF was designed to adapt as a stand-alone product or be included within a tank which fostered the development of an additional, extensive line of products including the ESF PLUS, Maxi-Cure and Aquafer. The combined products have undoubtably prevented the waste of TENS OF MILLIONS OF GALLONS OF WATER and eliminated the discharge of MILLIONS OF POUNDS OF CHEMICALS AND SALT into the environment.

As a water descaler or scale preventer, the ESF consists of two distinct processes. The first is a catalytic chamber where a negligible drop in water pressure upsets the carbon dioxide-bicarbonate alkalinity-calcium balance causing molecules of calcium carbonate particles to form. These particles then flow through a flexible, inert catalytic material where the individual particles nucleate into larger entities. The water then enters multiple magnetic fields where a relatively weak voltage is induced by the application of Faraday’s Law equation. The resulting energy acts on the water in different ways. First, it breaks down the zeta potential separating the mildly charged hardness particles causing them to agglomerate into larger more stable, long-life particles. Second the clustering of water molecules around dissolved ions causing ionic radii is canceled and thirdly hydrogen bonded water clusters are reduced. The last two causing the surface tension drop.

Applications for our ESF based systems of water descalers include

• Apartment complexes
• Hotels
• Motels
• Resorts
• Reverse Osmosis pretreatment
• Restaurants
• Homes
• Hospitals
• Nursing Homes
• Condo Complexes
• Farms and ranches
• Research facilities

The ESF Hard Water Descaler / Scale Preventer is used by many to protect their equipment, as well as many commercial enterprises.

What Does the ESF descaler Do?

Hard water scale blocks nozzles, coats pipework, and significantly decreases the efficiency of boilers and heat exchangers leading to substantially increased energy consumption.

The scale preventer avoids these costly challenges by treating water with a patented system that forms calcium hardness crystals, which pass through a strong magnetic field, which renders them harmless to plumbing fixtures. This produces water that is much easier to clean. In addition, the surface tension of the water is greatly reduced, resulting in a higher quality of water absorption in the human body and plant life.

Commercial applications of the ESF

These are just some of the business types that benefit from reducing hard water issues from magnetic water treatment for scale prevention.

• Landscaping: Scale prevention improves soil percolation and better root propagation by lowering the surface tension of the water.
• Restaurants: The ESF prevents scale buildup in icemakers, steamers, and coffee makers.
• Hospitals: Kitchen maintenance is reduced, and protection is provided for autoclaves, steam tables, and laundry equipment.
• Specialty equipment: The ESF Scale Preventer is used for scale prevention pre-treatment in commercial reverse osmosis systems, car washes, cooling towers, greenhouses, and many more.

‍

The most environmentally friendly, compact, easy to install and maintain system to provide totally Safe, Clear, No-taste water from questionable sources worldwide

• Ultra Violet Disinfection: Kills bacteria, cysts, viruses and all organic material
• Hard Water Scale Prevention: Patented catalytic / magnetic process
• Taste and Odor Removal: Activated carbon treatment removes chlorine, chloramines and pesticides
• Iron and Manganese Removal: KDF Media used to remove heavy metals and any residual chloramines
• Suspended Solids Removal: Nano Ceramic filtration removes suspended solids down to 0.2 micron
• Designed for Export Applications: Engineered for applications where there are concerns with non potable water due to bacteria and viruses.

Wall Mount design for installation ease and conserves floor space.

Did you know?

Most beverages, including coffee, tea, juices and sodas are 98% water. Its very important to remove all of the elements in water that are responsible for taste and odors. Having safe, healthy and fresh water will result in all of your beverages tasting just as they were intended.

The ESF Plus Water Treatment System is an incredibly effective way to produce water for your home or business that will protect your plumbing and fixtures along with providing excellent quality water for drinking was well.

• Produce water with resistivity as high as 18 megohms
• TOC Removal
• Filtration of bacteria, viruses, cysts and endotoxins
• Laboratory and medical grade specifications attainable
• System flow rates from ½ LPM to 25 GPM
• Bench mount, wall mount and skid systems available

Pure water has a number of definitions depending on the application.  Some examples include rinsing of laboratory glass ware, autoclave water, reagent grade for compounding or dilution, preparation of topically applied compounds, injectable solutions, rinsing of opticals, rinsing of silicon wafers in electronics, and the list goes on and on.  The best approach before purchasing a system is to consult with a knowledgeable engineer.  Dime Water engineers have a combined experience of over 60 years in application, design and construction in the industry.

Processes employed in obtaining high purity water may include backwashing and cartridge filtration ranging from 0.2 to 5 micron retention, activated carbon, UF, NANO and RO membranes, Ultra Violet lamps, Ozone generation from 185 NM lamps or corona discharge and DI resins.  Materials of construction are carefully selected to avoid corrosion and eliminate the possibility of extractables contaminating the water.

All systems are constructed on robust framework that is 100% corrosion resistant with all components readily accessible for in-field servicing.  Additionally,  regardless of size, systems are fully automatic for hands-off operation.  Adjustment valves are clearly marked as are gauges and instruments.  A typical mid-level High Purity System with RO P&ID is shown in the drawing below.

Unharness the powers of nature and irrigation science to improve plant penetration of even brackish water with less water needed. A low electric voltage is induced in the water by its flow through a strategically placed, strong (neodymium) magnetic field. The resulting energy imparted to the water causes it to cluster in stacked hexagonal planes while releasing a small percentage of hydrogen ions that create hydronium (H3O). Such minor changes to water have been laboratory and field documented to cause water to travel further and more quickly in plants’ xylem (capillary) system. Even “bad” water.

• NO ADDED CHEMICALS & NO ELECTRICITY & NO WASTED WATER
• 10% PLUS WATER SAVINGS PLUS IMPROVED YIELDS
• A SMALL FRACTION OF THE COST OF REVERSE OSMOSIS WITH ZERO MAINTENANCE

‍

• Units are bidirectional and may be installed vertically or horizontally
• A material and workmanship 15 year warranty accompanies each unit
• Maximum temperature for magnet life is 100oF
• Maximum operating pressure is 100 PSI for MGM-750 , -1000 and 150 PSI for MGM-1500 through MGM-6000
• We will quote and construct custom sizes and materials upon request.

‍

‍

‍

Floor Mounted Features of our Light Commercial Reverse Osmosis System

Our Light Commercial Reverse Osmosis System frame is constructed of welded St. Footprint is 20” x 20” and the height varies from 40” to 54” depending on the output. All are fully tested and have inlet 5 micron and carbon cartridges, low-pressure switch, tank fill control, pressure gauges, re-circulation pressure set valve, auto-adjust drain control. Numerous options are available.

Numerous options are available such as a microprocessor based controller, atmospheric tank level controls, TDS monitoring, flow meters and an attached ESF unit for membrane protection without salt or chemicals.

What does the Maxi-Cure Do?

Untreated water enters the Maxi-Cure system flowing through multiple layers of filtration, reducing the levels of chlorine, volatile organics, THMs, off tastes and odors, sediment, suspended solids, iron, manganese, and hydrogen sulfide (rotten egg smell).

The filtered water then passes through a spring-loaded chamber, which creates a small pressure drop. This pressure drop initiates the formation of calcium hardness crystals.

These crystals pass through a catalytic surface, which greatly multiplies the number of crystals.

The water containing a multitude of calcium crystals then passes through a strong magnetic field which serves to hold the crystals in suspension form for a minimum of 72 hours rendering them harmless to your plumbing and plumbing fixtures. The entire process bonds calcium ions to each other rather than to your plumbing. A simple wiping with a damp cloth is typically sufficient to remove any residual mineral deposits rather than the usual abrasives and “elbow grease” that are normally required. The surface tension of the water is also reduced which results in a higher quality of water absorption into the human body and plant life.

Due to the uniqueness of the Maxi Cure, we can customize the filtering media to troubleshoot virtually any water issue you may have.

The Maxi-Cure Plus is essentially the same as the Maxi-Cure, except periodically and automatically OZONE is drawn into the unit to kill any accumulated bacteria

How Does the Maxi-Cure Plus Work?

Untreated water enters the Maxi-Cure system flowing through multiple layers of filtration, reducing the levels of sediment, suspended solids, iron, manganese, and hydrogen sulfide (rotten egg smell).

The filtered water then passes through a spring-loaded chamber, which creates a small pressure drop. This pressure drop initiates the formation of calcium hardness crystals.

These crystals pass through a catalytic surface, which greatly multiplies the number of crystals.

The water containing a multitude of calcium crystals then passes through a strong magnetic field which serves to hold the crystals in suspension form for a minimum of 72 hours rendering them harmless to your plumbing and plumbing fixtures. The entire process bonds calcium ions to each other rather than to your plumbing. A simple wiping with a damp cloth is typically sufficient to remove any residual mineral deposits rather than the usual abrasives and “elbow grease” that are normally required. The surface tension of the water is also reduced which results in a higher quality of water absorption into the human body and plant life.

After a preset period of time such as 1 to 4 days, the unit goes through a 3-step regeneration period during which any accumulated bacteria is killed and the filter media is returned to its as-new condition.  This is normally set to occur a 2:00 am to avoid untreated water getting into the facility.

Creates alkaline water and adds electrolytes

Adds molecular Hydrogen to water

Pre-treat with 5 micron, KDF, Enhanced Carbon.  Post treat with cation resin, adjustable pH feature yielding magnesium, trace calcium, molecular Hydrogen and crystals with Hematite, activated carbon.

Pressure gauge to show pre-filter condition, electronic lighted display to advise filter change. Drain Flush Valve, 3.2 Gallon tank, long reach faucet, EZ adapter, ¼” tubing and plastic drain clamp.

GALLONS DAILY TREATED WATER: 100
PRODUCT: DRAIN RATIO: 1:1
UNIT SIZE W X H X D – INCH: 16 x 19 x 6
TANK SIZE DIA. X HEIGHT – INCH: 11 x 14.5
TANK GALLONS IN STORAGE⁽¹⁾: 2.6
WATER QUALITY METER: YES
NUMBER OF TREATMENT STEPS⁽²⁾: 10
REMINERALIZER / pH INCREASE: YES
TYPICAL TDS REDUCTION⁽³⁾ – %: 90
HEMOTITE AND CRYSTALS: YES
NEODYMIUM MAGNETIC FIELD: NO
STRUCTURED WATER CELL: NO
VORTEX: NO

NOTES:
(1) BASED ON 60 PSI FEED, 8 PSI PRE-CHARGE, AUTO SHUT-OFF AT 48 PSI.
(2) CUSTOM FILTERS USED THAT PERFORM MORE THAN ONE FUNCTION.
(3) BASED ON 60 PSI FEED, TDS <400 PPM, 77° F AND TEST BEFORE POST TREATMENT . HIGHER VALUES TO NON-ELECTRIC PERMEATE PUMP TO ELIMINATE TDS CREEP.

Nitrates in water in levels in excess of 45 mg/l as Nitrate NO3  or 10 mg/l expressed as Nitrogen-N can be a health issue when in drinking water. They impart no color, taste or odor to water. The source of nitrates in water is caused by the breakdown of nitrogen based fertilizers, animal waste and rotting vegetation by certain microorganisms in soil. Rain then transports the nitrates through the soil into ground water (wells) and into lakes and rivers (surface water).  Very common in well, lake and river waters.

Sulfates in water in water in water in excess of 250 mg/l as SO4 has negative health effects.  They impart a medical taste to water but no color or odor.  The source is the erosion of natural minerals into water.  Seldom found in surface water but common in well water.

We normally incorporate Nitrate and Sulfate resins which regenerate with Chloride with softening resin that regenerates with Sodium to utilize both Sodium and Chloride which is salt simultaneously as a benefit to the end user. This combination will

• Treat Hardness/Scale
• Treat Nitrates or Sulfates

Once Nitrates are consumed, they change to nitrites which enter the bloodstream and reduce the oxygen carrying ability of the blood— a condition called methemoglobinemia. Most healthy adults have enzymes that repair this condition whereas infants, the elderly and people with compromised immune systems do not.

Drinking water with a sulfate level in excess of 250 mg/l may also cause a health issue. Water with high levels of sulfate often has a medicinal taste causing humans and livestock to drink less water than they should and has a laxative effect that further dehydrates. At very high levels copper plumbing corrosion is common. Both Nitrate and sulfate are negatively charged molecules as they exist in water and may be easily reduced to almost non-existence through the use of our special anion exchange resins.

These resins are very similar to those used within water softeners. The completed units look exactly like a water softener.  Most often, a single unit is employed providing treated water except for a 90 minute period in the middle of the night every few days while the system regenerates.  Meter controlled alternating twin versions are available to provide 24/7/365 treatment.

As a safety step, we employ resins that have superior holding ability for either nitrate or sulfate so that there will never be “dumping” of these compounds into the treated water stream even if they are run beyond their capacity. Sizes range in flow rates from those for home to 100’s of gallons per minute for hotels, restaurants, apartment buildings, etc. Because each system is tailored to the application, pricing can be quoted only after a water analysis is provided and a design calculated.

Dime Water, Inc. can offer customers just about every kind of cartridge that one can think of including:

• Off the shelf cartridges – for taking out turbidity and making the water look clear
• Variety of carbon cartridges – for removing taste and odor (including chlorine and chloramines)
• Cartridges produced with the same media that one would find in the list of filter media – for particular applications such as arsenic or fluoride removal (up to 4 different media can be combined in 1 cartridge)
• Cartridges are often a viable alternative for producing water at a single point, like a special faucet or a water cooler or something of that nature where it is either impractical or financially not viable to treat all of the water in the facility.

We put the same quality and attention to detail into our residential water softener products that we do for our commercial water conditioners and commercial reverse osmosis systems.

Standard Residential Water Softener Models

‍

‍

‍

Nano Filtration is a pressure driven separation process. The filtration process takes place on a separation layer formed by an organic semi per-meable membrane. The driving force of the separation process is the pressure difference between the feed (retentate) and the filtrate(permeate) side at the separation layer of the membrane. However, because of its selectivity, one or several components of a dissolved mix-ture are retained by the membrane despite of the driving force, while water and substances with a molecular weight less than 200D (daltons) are able to permeate the separation layer. Because nano filtration membranes also have a selectivity for the charge of the dissolved components, monovalent ions will pass the membrane and divalent and multivalent ions will be rejected.

NANO SYSTEMS 1,500 AND 3000 GPD FEATURES:

• All items except atmospheric storage tank mounted on an aluminum skid with wheels for ease of installation. Entire unit without atmospheric storage tank(s) measures 48” wide X 25” deep and 61” tall.
• Maxi-Cure 3000 unit for pretreatment.
• NANO unit with thin film element. Designed for 75% recov-ery and 66% rejection.
• Rotary vane pressure pump.
• Three pressure gauges.
• Waste and product flow meters.
• High and low pressure safety switches.
• Two 2.5” X 20” long cartridge pre filters. 5 micron and car-bon block.
• Recirculation and drain valves.
• Automatic flush on start up.
• Three tank level switches. System on/system off/re-pressure pump control.
• Automatic controller with four status lights.
• TDS monitor on treated water line.
• Complete 12gpm @ 50psi re-pressure pump system
• UV light on outlet as final protection
• Unit completely tested on a pallet suitable for LTL truck shipment

‍

‍

All sea water reverse osmosis units have the following standard features:

• Constructed for sea or land use
• Fiberglass element housings
• Long-life stainless steel frame
• Stainless fitted pressure pump
• 3 stages of pre-filtration
• Liquid filled stainless steel pressure gauges
• Shock mounted high pressure pump
• Low pressure safety shut-off
• 30% Recovery. Permeate TDS – Check valve on permeate
• 30/50 pressure tank shut-off valve – Ball bearing motor
• High pressure safety valve – Stainless steel pressure valve

Enjoy better than bottled water quality throughout your entire home:

• A Reverse osmosis water filter can provide great tasting safe water free of bacteria, viruses, cysts, pharmaceuticals, fluoride, arsenic, trace metals, chlorine, chloramines, radioactive materials, organic compounds, and virtually any imaginable matter that can exist in water.
• Soft water for exquisite bathing, showering, and shampooing.
• Protects plumbing, water heaters, fixtures, and appliances – Replaces water softeners, carbon filters, sediment filters, faucet filters, under counter RO units, and bottled water.
• Extremely low maintenance and reliable system. Hundreds of similar units produced since 1994.

Reverse Osmosis Water Filter Features

• 200 gallons of treated water in the inert polyethylene storage base of the unit
• Space saving size 40″ x 58″ x 45″ high,
• Indoor and outdoor versions available
• 50-80% water efficiency
• 5 micron/activated carbon pre-filtration
• 12GPM re-pressure system to home
• Ultra Violet lamp final filtration to home
• Inlet and treated water quality displayed
• Built-in by-pass simplifies and lowers installation cost
• Constructed specifically for YOUR water. City or well
• Wetted components FDA and/or NSF approved

Pre-treat with 5 micron, KDF, Enhanced Carbon, neodymium magnetic Field. Post-treat cation resin, hematite/crystals, and activated carbon. Structured water cell with vortexes. High efficiency 3:1 product/drain ratio.

Drain Flush Valve, 3.2 Gallon tank, lon.

GALLONS DAILY TREATED WATER: 100
PRODUCT: DRAIN RATIO: 1.4:1
UNIT SIZE W X H X D – INCH: 16 x 19 x 6
TANK SIZE DIA. X HEIGHT – INCH: 11 x 14.5
TANK GALLONS IN STORAGE⁽¹⁾: 2.6
WATER QUALITY METER: NO
NUMBER OF TREATMENT STEPS⁽²⁾: 11
REMINERALIZER / pH INCREASE: NO
TYPICAL TDS REDUCTION⁽³⁾ – %: 95
HEMOTITE AND CRYSTALS: YES
NEODYMIUM MAGNETIC FIELD: YES
STRUCTURED WATER CELL: YES
VORTEX: YES

NOTES:
(1) BASED ON 60 PSI FEED, 8 PSI PRE-CHARGE, AUTO SHUT-OFF AT 48 PSI.
(2) CUSTOM FILTERS USED THAT PERFORM MORE THAN ONE FUNCTION.
(3) BASED ON 60 PSI FEED, TDS <400 PPM, 77° F AND TEST BEFORE POST TREATMENT . HIGHER VALUES TO NON-ELECTRIC PERMEATE PUMP TO ELIMINATE TDS CREEP.

Dime Water Manufacturing engineers and designs twin alternating systems for any size application where uninterrupted conditioned water is needed. From our smallest 10 gallon per minute system for to our largest commercial/industrial equipment for large hospitals and hotels, Dime Water will customize a system for your specific needs.

This Algae Destroyer system is a complete and tested system consists of a Fan Cooled Controller, a Float Platform, an Ultra-Sonic Transducer, and sufficient cable to match your application requirements.

• No Chemicals
• Uses The Energy of a Light Bulb
• Retracts for Recreational Use.
• Safe for Other Aquatic Life

‍

‍

How does a UV Light Work?

UV light is similar to the light from the sun and must be treated as such. Ultraviolet disinfection has been known for over 100 years as an effective method for inactivating waterborne pathogens and viruses. Ultraviolet light disinfects when it is applied to the water at a specified intensity and length of time. Waterborne micro-organisms are rendered “microbiologically dead” by penetrating the cell wall and affecting the microorganisms’ DNA so that it is unable to reproduce.
Ultraviolet Disinfection has become the most popular alternative or supplement to traditional chemicals such as chlorine and chloramines. These systems offer a number of advantages as well:

• Safe and easy to operate.
• Easily adapted to fit existing plumbing
• Does not inject any taste or odors like chlorines do
• Does not produce any undesirable by-products

Most private homes receive water from a municipal supply which is treated at the municipal water treatment plant.  Other private homes have their own well which pulls water from the ground into the home.  Both sources have the potential to become contaminated in many different ways.  By installing a UV treatment system, you can eliminate the possibility of contaminated water from such microorganisms as E. coli, fecal coliform, and Cryptosporidium.

An Up flow filter may be the answer you’re looking for. Quite often there is a need for filtration where the site limitations prevent the installation of typical filters that require water to drain and electricity some these installations include:

• Vacation cabins
• Farms / barns
• Boats
• Boat docks
• Roof tops
• Apartments
• Motor homes
• Condominiums
• Office buildings

Many up flow filter media options are available including:

• Activated carbon for chlorine reduction
• Surface enhanced carbon for chloramines reduction
• Mixed material for PH/alkalinity increase
• H/A media for fluoride reduction
• Arsenic redution resin
• KDF for chlorine and heavy metals reduction

Water stores are fast growing businesses worldwide and they are the lowest cost method to sell purified drinking water. There are very low startup costs for this business for anyone who wants to get into the water business. These water stores fill the need for good tasting, low cost, safe drinking water and most people in the US will buy it because they are uncertain about the quality of tap water.

Dime Water, Inc. provides chemical-free methods of treating water for the water store business market. Our reverse osmosis systems, backwashing carbon and turbidity filters, UV systems, AquaferTM and MaxicureTM units are the perfect choice for water stores. The Maxi-cure removes iron, manganese and turbidity, removes taste and odors of chlorine and provides safer, healthier water at every faucet. The unit can be customized for many water problems including ozone injection for bacterial issues.

Also, water stores provide cheaper water as there is no bottle cost or delivery cost. Dime Water, Inc. can provide the equipment and support customers need for a successful business. Working together with our clients to design and layout the equipment, our team keeps the cost low without sacrificing quality.

Whole house reverse osmosis water filter systems are custom built based on detailed laboratory testing of the water to be treated. The equipment can be designed for municipal or well. When designing well water treatment, we take into consideration the depth of the well. This gives us an idea of the future quality of the water. Shallow wells are unpredictable and are subject to radical changes as deeper wells tend to be more consistent, therefore, with shallow wells, we may recommend additional water treatment methods to cover needs in the future. Next, we consider additional variables: The size of the home, the size of the plumbing coming into the home, whether or not the home is on septic or municipal sewer, and where the equipment is to be placed. Once we have all the above information, we engineer a whole house reverse osmosis water filter specifically for your needs.

Our whole house reverse systems require very little maintenance. We typically suggest an annual service of changing the pre-filtration cartridges and a simple inspection of equipment, which is a minimal cost to the consumer. We have records where homeowners have gone up to three years without needing any service for their whole house reverse osmosis filter. One of our most notable clients, NASA has one of these systems they use for plating on spacecraft. Their system produced over 10,000,000 gallons before service was needed.

‍
